PLANARIZER MACHINES

Pola e Massa has an established and proven experience in planarization, obtaining top results in finishing and offering high level performances. Its product range currently includes two different solutions able to manage mechanical planarization processes.

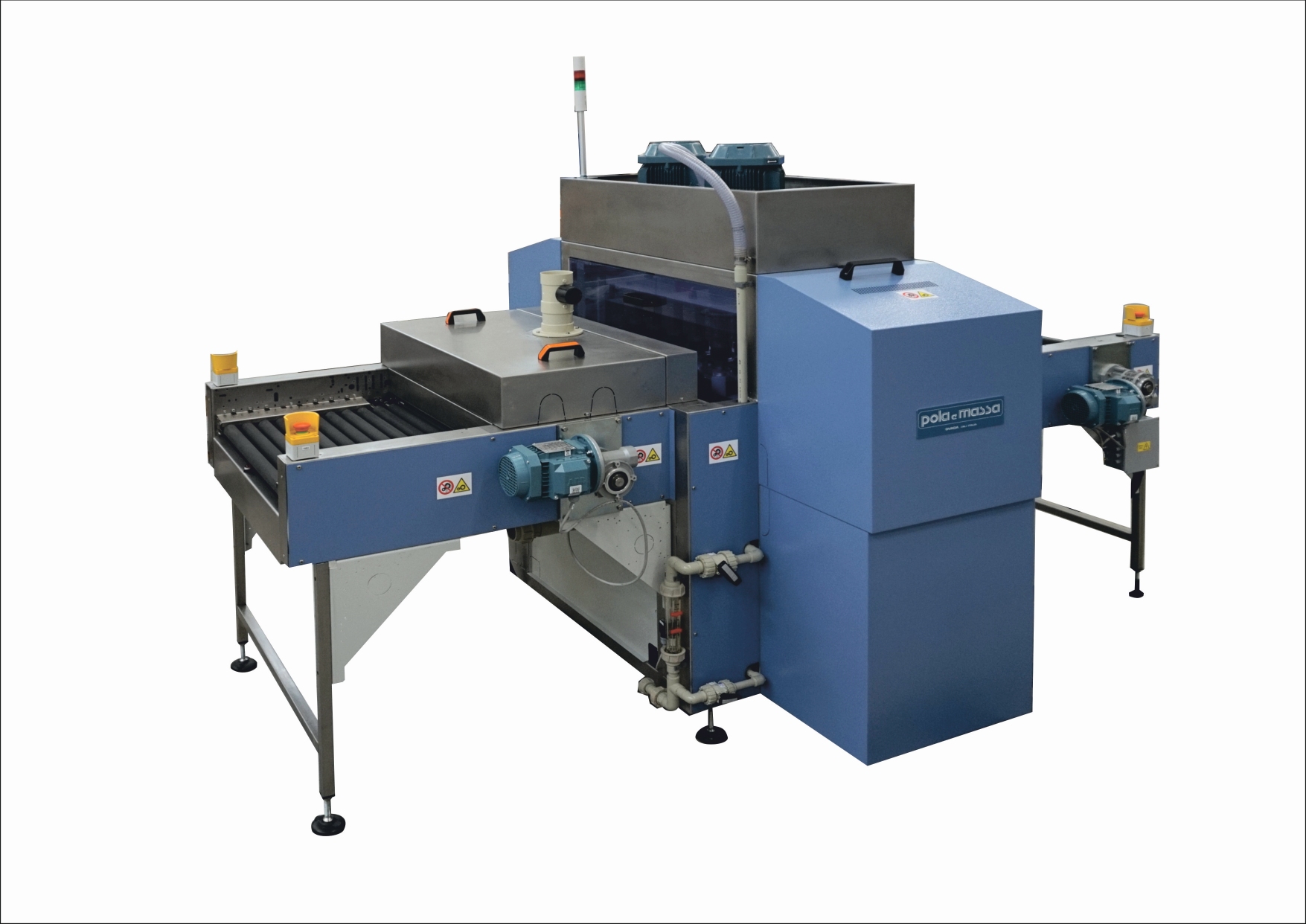

PeM Planarizer 650

Compact size solution with multiple vertical brushes that allows to remove excess of applied paste from conductive holes during PCB’s manufacturing processes. It is an evolution of the previous Multiroll model, successfully marketed for more than 10 years and suitable to deburr and to remove paste in excess avoiding holes ovalization. Dozens of these machine were installed and currently serviced and maintained at leading PCB’s manufacturers.

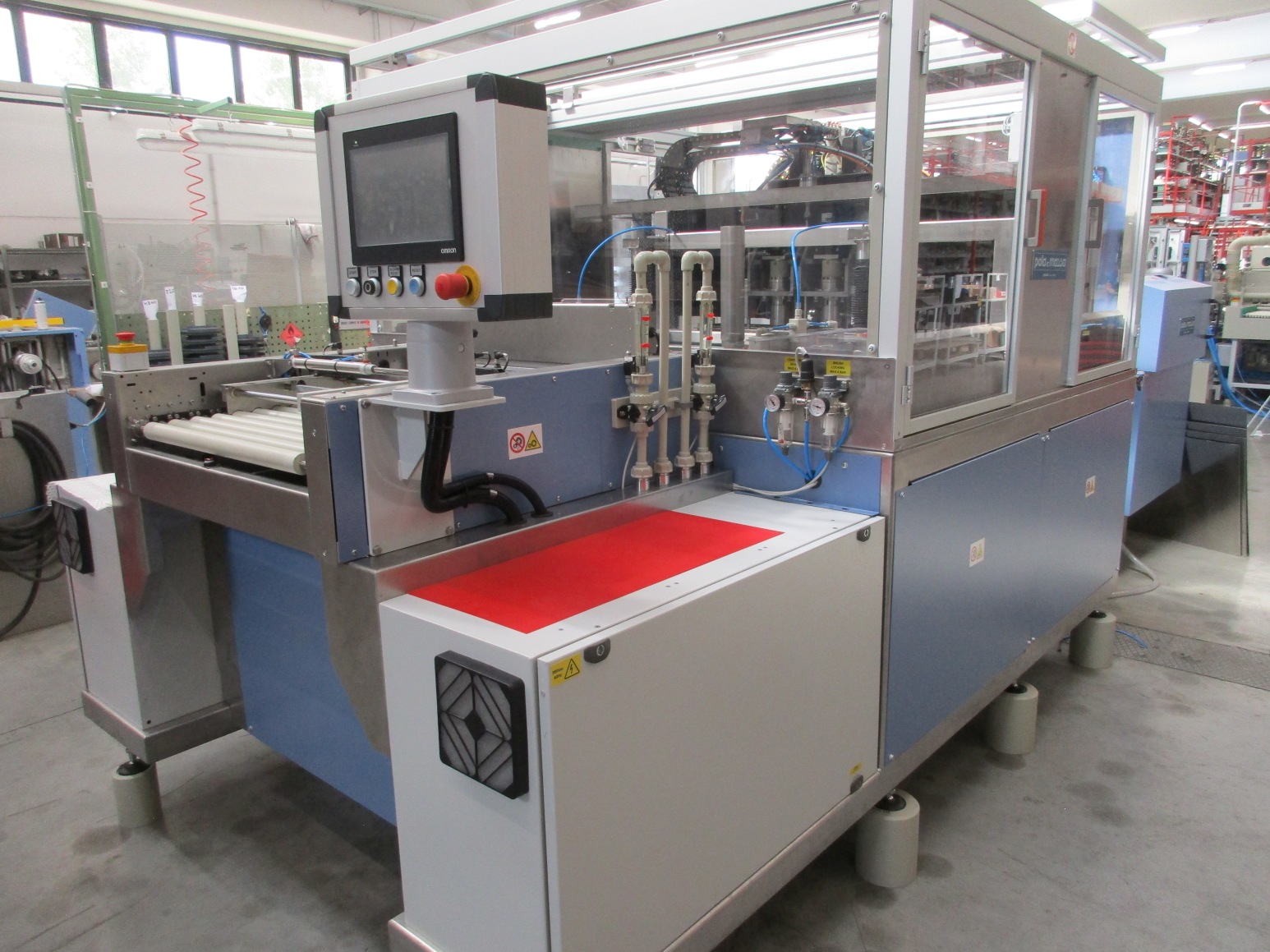

PeM 650 DS

The Planarizer 650 DS is engineered to handle thin materials and double-sided panels, the 650 DS performs double-side processing in a single pass, ensuring high productivity and consistent results.

Specifically developed for applications such as via hole paste removal, surface treatment, copper button removal, and deburring of sharp corners and hole edges, the machine has been further enhanced to deliver superior performance, particularly in thin material processing and double-side treatment.

Its flexible configuration allows operation in single-side or double-side mode, making the PeM Planarizer 650 DS a versatile and reliable solution for a wide range of PCB manufacturing applications.

PeM Evolution 3000

It is the latest evolution of the PeM Planarizer mod. 650, well recognized at worldwide level as a reference point for above mentioned processes. More performing planarization requests coming from the market pushed Pola e Massa to develop a flexible and suitable solution to meet increasing complexities coming from multi-layers PCB’s production. This machine, by a single vertical brush, is able to manage its movements controlling the process on 3 different axis and treat panel also only locally.
It can be particularly useful for small productions batches, for R&D departments and eventually to increase production capacity of the already existing PeM Planarizer mod. 650 machines.

PeM 1B/2B

The PeM Planarizer 1B/2B represents the latest evolution of our successful PeM Planarizer series, a benchmark in the PCB industry with dozens of installations among leading manufacturers worldwide.

Built with a stronger frame and solid structure, this new model ensures outstanding performance even in long and demanding production processes. Our consolidated experience has allowed us to design a more flexible and precise machine.

The two-brush modules provide perfect control of every movement along three different axes, guaranteeing maximum accuracy and consistency of results. Compact and versatile, the 1B/2B is ideal for both long and short production runs.

PeM 650 4B

The new PeM Planarizer 650 4B combines efficiency and compactness in a single, high-performance solution. Equipped with four brushes, it performs single-side treatment in one pass, delivering outstanding surface quality even on thin materials and in post Via Filling processes. Thanks to its reduced footprint and smart design, the 650 4B fits perfectly into production lines where space and flexibility matter most.

For further information do not hesitate to contact Pola e Massa engineers.
